Precision Casting Parts

Precision casting is a manufacturing method in which small, complex metal objects are produced with a high degree of accuracy and detail. Unlike traditional casting processes, where molds and shapes typically need to be changed and updated after each cycle, precision casting instead uses a crucial step of measuring and adjusting to achieve high accuracy in the casting result.

What is precision casting?

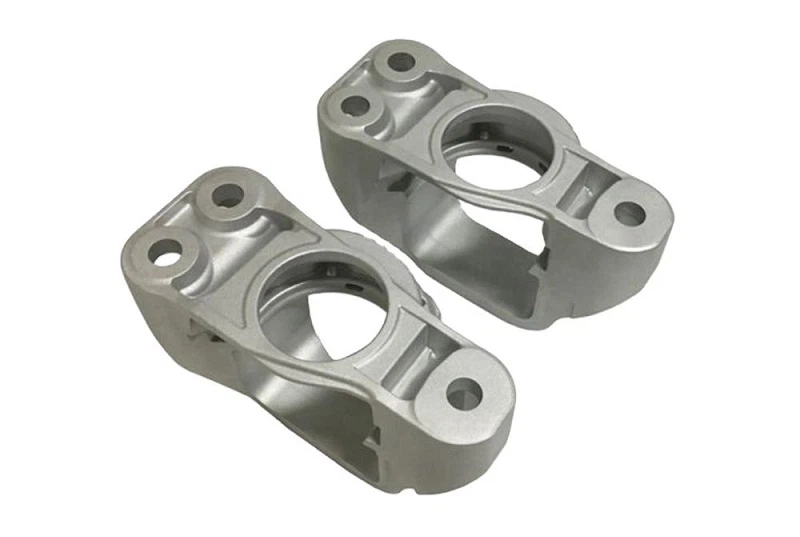

Precision casting parts001

Precision casting is a manufacturing method in which small, complex metal objects are produced with a high degree of accuracy and detail. Unlike traditional casting processes, where molds and shapes typically need to be changed and updated after each cycle, precision casting instead uses a crucial step of measuring and adjusting to achieve high accuracy in the casting result.
There are several methods for precision casting, including mist casting, vacuum casting and low-pressure casting. All methods have their unique advantages and limitations, but what they have in common is that they require a high degree of accuracy and precision in production to achieve the desired result.
Precision casting is often used in industries that require high accuracy and detail, such as aerospace, medical devices, electronics and telecommunications.

1

01 Part name

Precision casting

2

02 Application

Investment casting components

3

03 Material

Stainless steel

4

04 Process

Investment casting
& Machining

5

05 Casting method

Thermal Gravity Casting

6

06 Surface finished

As raw cast
(Shot blasting)



Part Application



2

Investment castings

Investment casting, also known as lost-wax casting, is a manufacturing process used to create metal parts with complex shapes and intricate details










Available Material

1-Carbon steel

2-Low alloy steel

3-Corrosion-resistant steel

4-Heat-resistant steel

General engineering cast steel (ISO 3755)

Carbon and low alloy cast steels for general applications (ISO 14737)

Corrosion-resistant cast steels for general applications (ISO 11972)

Heat-resistant cast steels and alloys for general applications (ISO 11973)

200-400

400-550MPa

GE200

1.0420

GX12Cr12

1.4011

GX30CrSi7

1.4710

200-400W

400-550MPa

GE240

1.0446

GX2CrNi19-11

1.4309

GX40CrSi13

1.4720

230-450

450-600MPa

GS340

1.0467

GX5CrNi19-10

1.4308

GX40CrSi17

1.4740

230-450W

450-600MPa

G20Mo5

1.5419

GX5CrNiMoNb19-11-2

1.4581

GX40CrSi24

1.4745

270-480

480-650MPa

G42CrMo4

1.7231

GX5CrNiMoN19-11-3

1.4412

GX25CrNiSi18-9

1.4825

270-480W

480-650MPa

G28Mn6

1.1165

GX2NiCrMoCuN25-20-6

1.4588

GX40CrNiSi25-12

1.4837

340-550

550-720MPa

G26CrMo4

1.7221

GX5CrNiMoCuN 26-6-3

1.4515

GX40CrNiSi25-20

1.4848



Production Process Introduce





3233



RFQ handle process



  • product-1-1
    Get contact

    You can find our contact info for further communication in “Contact US” column.

  • product-1-1
    Send drawing

    The 2&3D drawing format can be PDF, STEP, DWG, DXF and soon, can be sent via email. Wechat, WhatsApp, link.

  • product-1-1
    Get quotation

    After clear the demand of customer, we can send you the quotation with PDF format for documentation.

  • product-1-1
  • product-1-1
    Sign NDA

    For requirements for confidentiality of drawings, we can signed the NDA before you send drawing.

  • product-1-1
    Finish feasibility study

    The feasibility study of drawing is most key point to ensure the part can be fully meet drawing specifications, which is include material, dimension, surface treatment, and testing request.





Product Advantages

Utilizing the lost wax technique enables the production of fully realized ‘Near Net Shape’ items, facilitating the creation of intricate product designs without compromising on functionality or strength. Casting the tying hook in a singular process leads to substantial material and processing cost reductions. The exceptional precision in dimensions eliminates the need for post-processing, ensuring a competitive pricing structure. Following soft annealing heat treatment, the cast piece undergoes structural enhancement, extending the product’s operational lifespan.
