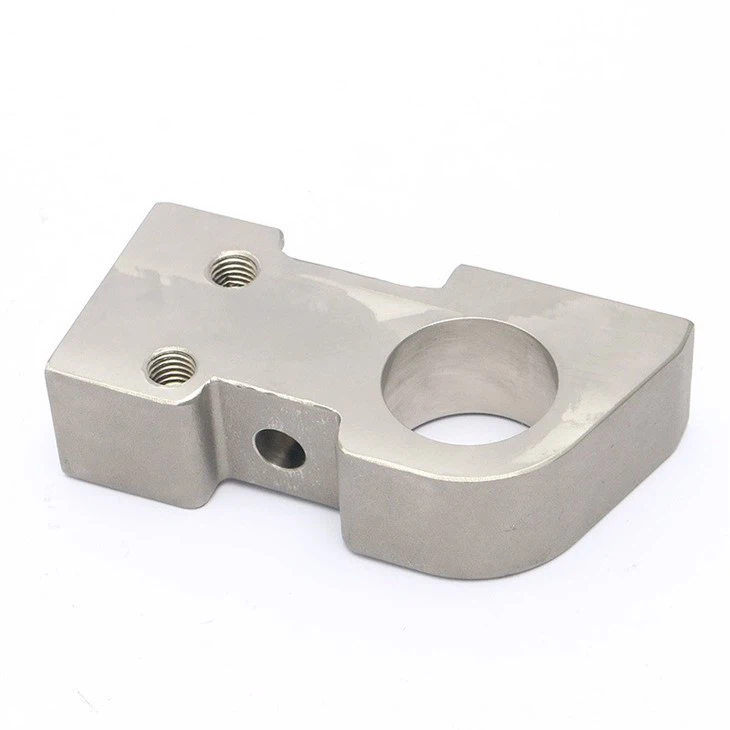

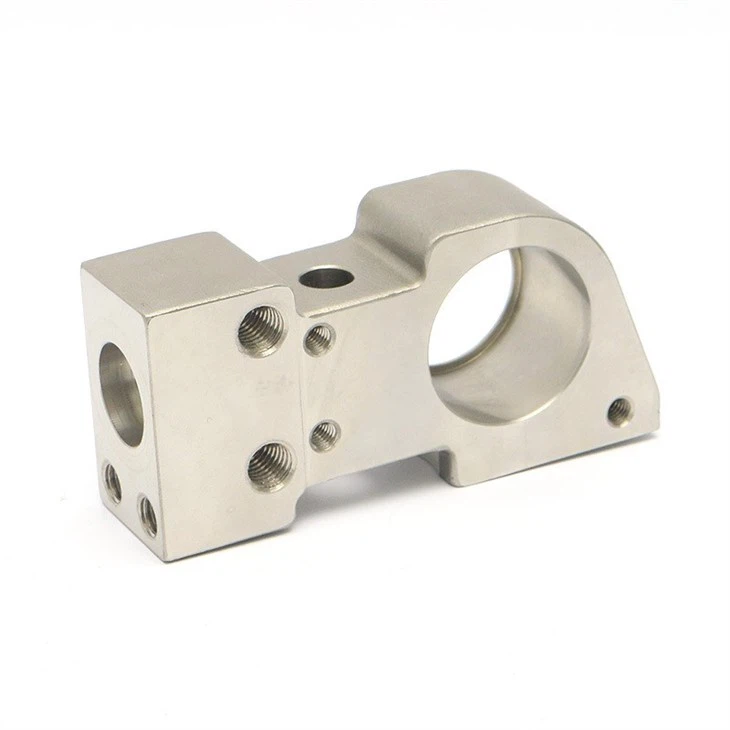

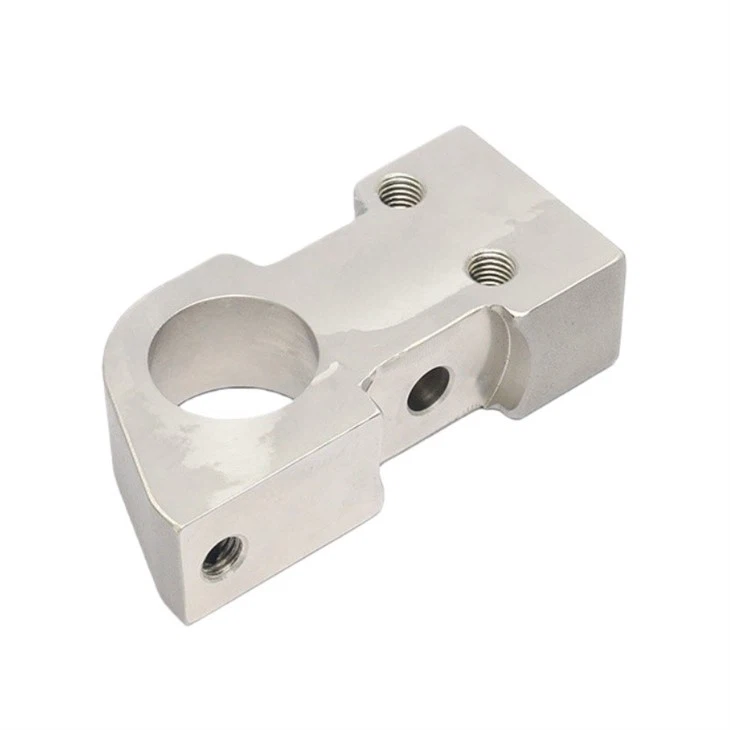

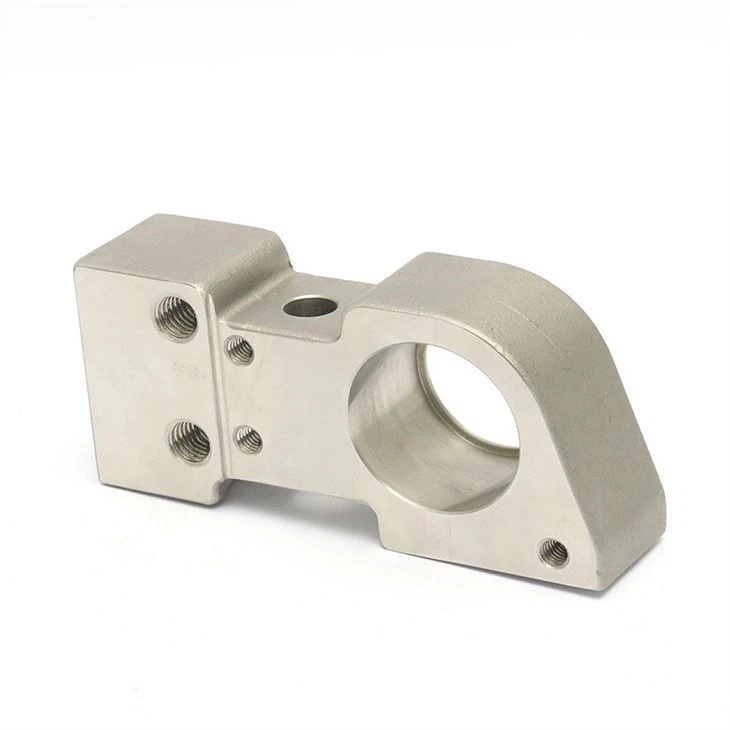

Left And Right Guide Blocks

Our Left and Right Guide Blocks are precision-engineered components critical for ensuring stability, alignment, and smooth linear motion in heavy-duty industrial machinery. Manufactured in our facility in Ningbo, China, these blocks are crafted from high-grade cast iron and undergo rigorous machining to deliver exceptional durability and performance under high-load conditions. They are essential for applications in automation systems, CNC machining centers, and press equipment.

Left and Right Guide Blocks

Product Features & Engineering Advantages

Robust Feature Set:

Superior Material Integrity:	Constructed from high-strength cast iron, our guide blocks offer exceptional wear resistance and the ability to withstand significant impact loads.
Precision Machining:	Every block undergoes meticulous grinding and milling processes. This ensures perfect geometric accuracy and a superior surface finish (typically Ra 0.8μm or better) for seamless integration with guide rails.
Dedicated Handing Design:	The specific left and right-hand configuration ensures balanced force distribution across the assembly, eliminating uneven wear and enhancing overall system stability.
Customizable Surface Treatment:	We offer optional surface treatments, including induction hardening for increased surface durability and anti-corrosion coatings, to adapt to challenging operational environments like those with high humidity or particulate matter.

Tangible Advantages for Your Operations:

Enhanced Machine Accuracy & Repeatability:	By effectively minimizing vibration and ensuring precise alignment, our Left and Right Guide Blocks are instrumental in maintaining and improving the positional accuracy and repeatability of your entire machine system.
Reduced Total Cost of Ownership:	The exceptional durability and low-friction operation directly translate to less unplanned downtime, lower consumption of lubricants, and significantly reduced long-term maintenance and replacement costs.
Optimized for High-Speed & Heavy-Duty Use:	The robust design and material selection make these components ideal for applications involving high speeds, rapid acceleration, and heavy loads, ensuring reliable performance where it matters most.

Technical Specifications

Primary Material:	High-Grade GG25 Cast Iron (or international equivalents).
Hardness:	Standard 180-240 HB. Through-hardening or surface hardening options are available upon request to achieve higher hardness values (e.g., 50-55 HRC).
Dimensional Tolerance:	Manufactured according to customer-provided drawings or in compliance with international ISO standards to ensure global interoperability.
Load Capacity:	Custom engineering support is available to specify the dynamic and static load ratings for your specific application.

Packaging & Delivery:

We recognize that precision components require impeccable protection. Each set of Left and Right Guide Blocks is individually wrapped in VCI anti-rust paper and securely mounted within custom-designed, reinforced wooden crates. This meticulous packaging prevents any movement, shock, or corrosion during shipping, guaranteeing that our products arrive in perfect condition, ready for immediate installation.

Applications

The versatility of our guide blocks makes them suitable for a wide array of industrial applications, including but not limited to:

Industrial Automation & Robotics: Providing precise and reliable linear motion in gantry systems, robotic arms, and automated pick-and-place units.
Metal Forming & Stamping: Ensuring guided, stable movement of the slide in mechanical and hydraulic presses, enhancing punching and stamping accuracy.
Precision Machine Tools: Critical for the stability of moving tables, saddles, and carriages in CNC milling machines, lathes, and grinding equipment.
Packaging & Material Handling: Guiding components in high-speed packaging machinery and heavy-duty conveyor systems, ensuring smooth and efficient operation.

Our Services & Customer Support

We are more than just a manufacturer; we are a solutions partner. Our service encompasses initial technical consultation, custom design and machining, prototyping, and dedicated after-sales support. Our engineering team is ready to collaborate with you to develop custom Left and Right Guide Blocks that perfectly match your unique technical drawings and performance requirements.

FAQ

Q1:	Do you offer custom machining services for non-standard sizes or designs?
A1:	Absolutely. Customization is our specialty. Send us your drawings, and our engineering team will provide a competitive quotation and feasibility analysis.
Q2:	What is the typical lead time for standard and custom orders?
A2:	For standard guide blocks, our lead time is typically 25-30 days. For custom orders, lead time depends on complexity and will be confirmed upon order placement.
Q3:	What are your accepted payment terms?
A3:	We accept T/T (Telegraphic Transfer) and Letter of Credit (L/C). We can also discuss flexible payment terms for established long-term partnerships.
