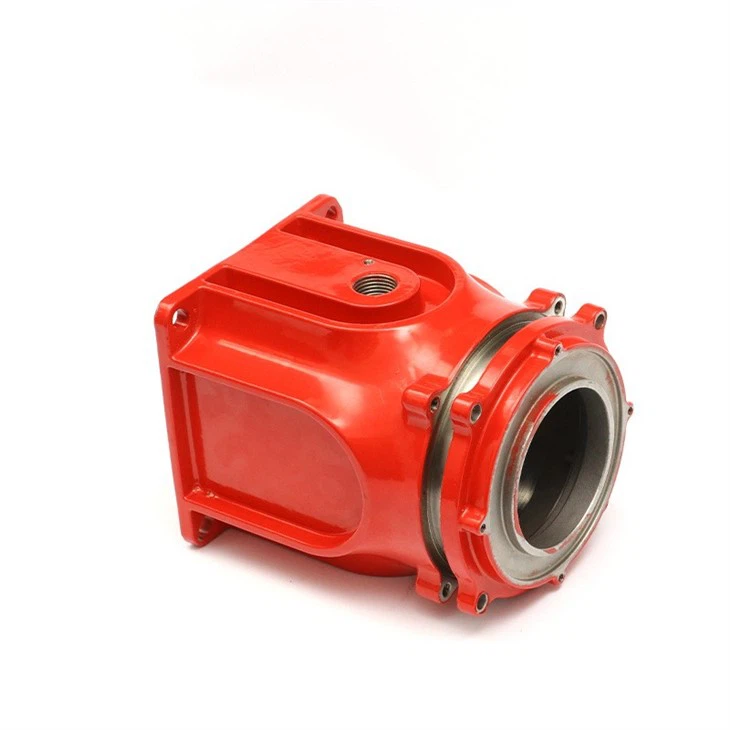

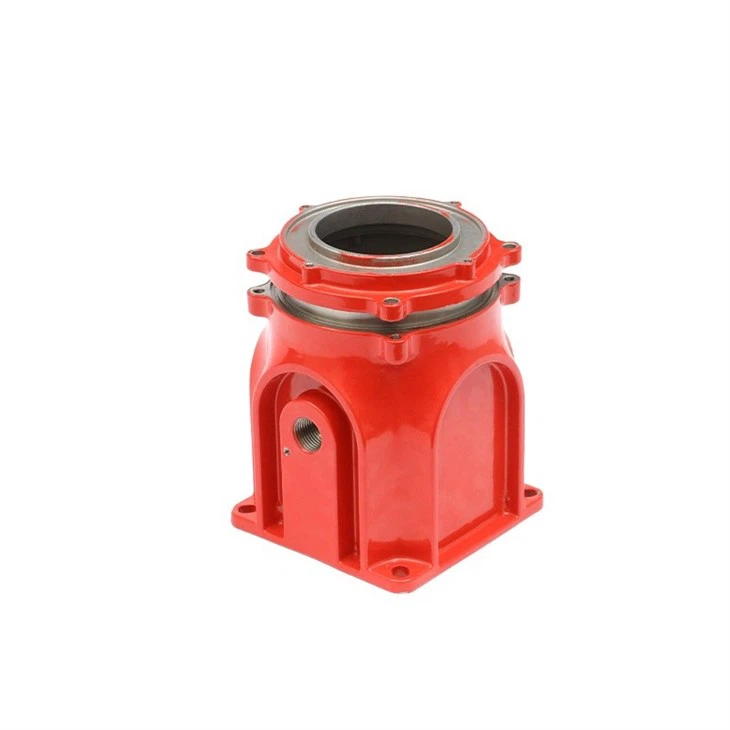

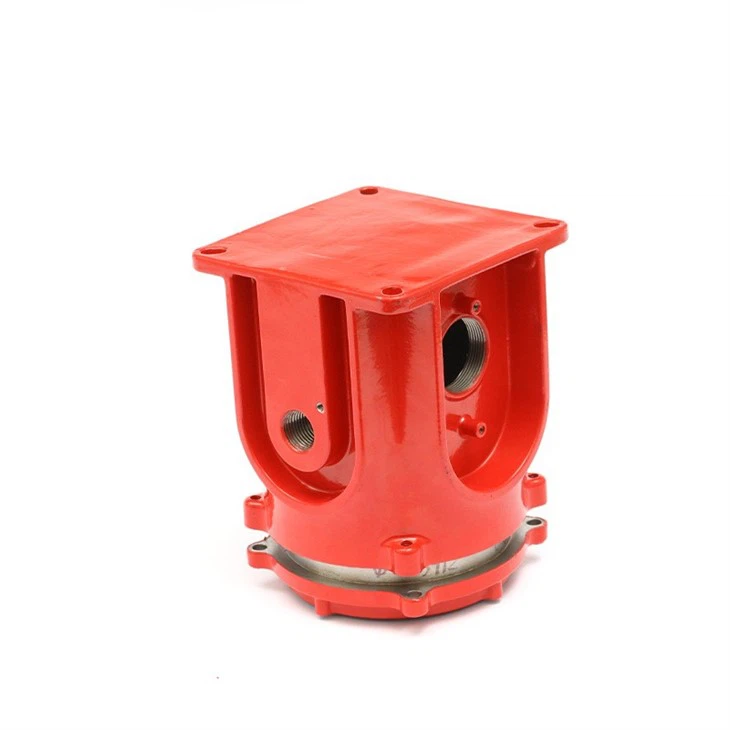

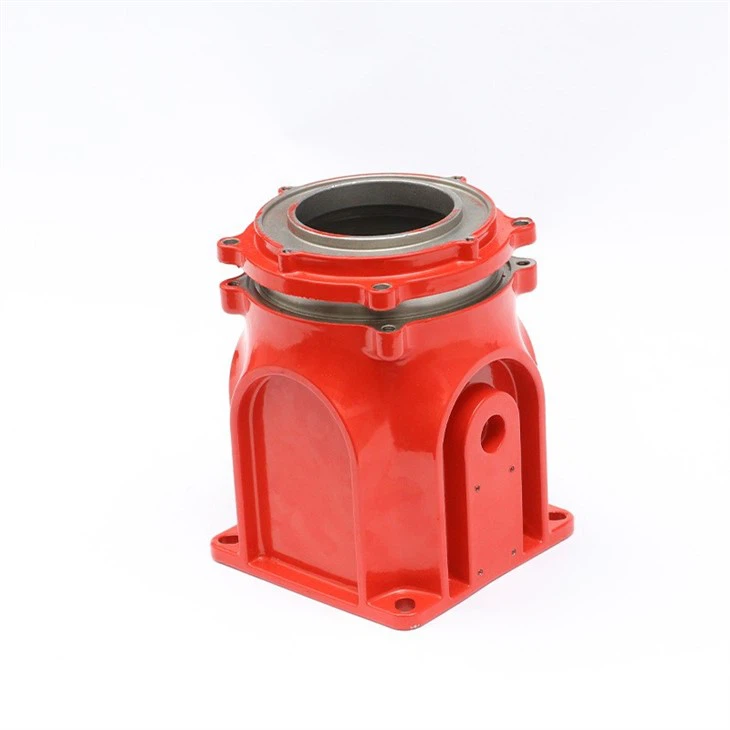

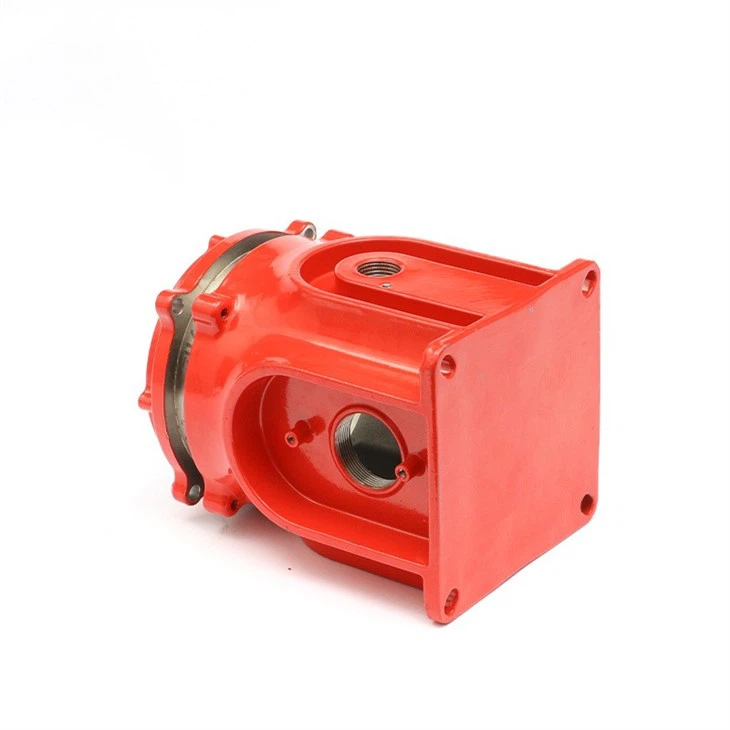

Investment Casting Audible and Visual Alarm
Our investment casting audible and visual alarm parts are manufactured using silica-sol precision casting, followed by 5-axis CNC finishing. This hybrid process guarantees tight tolerances (±0.05 mm), excellent surface finish (Ra 1.6), and superior corrosion resistance. Each unit is pressure-tested to 1.5 MPa and IP66-rated for dust- and water-tight performance.
Key Features
Advantages & Benefits
Investment casting allows complex geometries-such as internal cooling fins and acoustic chambers-without secondary assembly. The result is a lighter, stronger investment casting audible and visual alarm enclosure that reduces installation time and lowers total cost of ownership by up to 18 % compared to sand-cast equivalents.
Technical Specifications
|
Size range: |
50 mm-400 mm OD |
|
Wall thickness: |
2 mm-10 mm |
|
Threads: |
NPT, BSPP, or metric to DIN 13 |
|
Operating temperature: |
–40 °C to +85 °C |
|
Salt-spray resistance: |
≥ 1,000 h per ASTM B117 |
Applications
This device is ideal for offshore platforms, chemical plants, and mining sites where audible sirens and visual strobes must withstand saltwater, UV, and vibration. Custom flanges, bosses, and cable glands can be integrated for seamless integration with Siemens, Eaton, or R. STAHL alarm systems.
Packing & Delivery
Devices are individually bubble-wrapped, packed in PE foam, and placed in export-grade cartons or wooden pallets. Lead time is 4–5 weeks for tooling and first article; mass production orders ship in 4 weeks. Incoterms: FOB Ningbo, CIF, or DAP as required.
Our Service
From 2D/3D drawing to PPAP Level 3 documentation, our engineering team supports you at every stage. We provide real-time production photos, dimensional reports, and full material traceability. On-site factory audits and video inspections are welcome.
FAQ
|
Q1: |
Can you supply fully assembled alarm units? |
|
A1: |
We focus on casting and machining metal enclosures to let you source electronics locally, but turnkey solutions are available upon request. |
|
Q2: |
What is the minimum order quantity? |
|
A2: |
100 pcs for standard designs; 500 pcs for customization. |
Choose our investment casting audible and visual alarm components for unmatched durability, precision, and on-time delivery. Contact us today for drawings, samples, or a competitive quotation.
